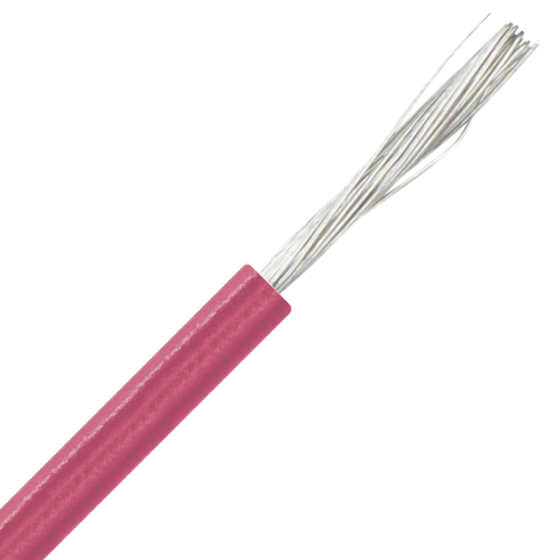

4180408 - LAPP ÖLFLEX® Multi-Standard <HAR> Hook-Up Wire H05V-K - 22 AWG - Pink

Name: 4180408 - LAPP ÖLFLEX® Multi-Standard Hook-Up Wire H05V-K - 22 AWG - Pink
Brand: LAPP
SKU: OLF4180408
Price: 9999 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: OLF4180408
Mfg #: 4180408
Manufacturer: LAPP

Contact 800-633-6339 for Availability

Request Quote for Price

This LAPP ÖLFLEX® Multi-standard Hook-Up Wire H05V-K was designed to meet North American and European market requirements. It passes H05V-K, UL AWM, UL MTW, CSA TEW & CE. Available with embossed cable markings upon request.

LAPP part number 4180408.

Must purchase in increments of 328.

Specifications

Download Spec Sheet

MANUFACTURER LAPP	MANUFACTURER PART NUMBER 4180408	UL STYLE / STANDARD UL 1007 UL 1569
TYPE H05V-K	SERIES ÖLFLEX® Multi-Standard H05V-K	AWG/GAUGE 22
CONDUCTOR STRANDING Stranded	STRAND COUNT High strand count	CONDUCTOR MATERIAL Tinned Copper
JACKET COLOR Pink	JACKET MATERIAL PVC	INSULATION MATERIAL PVC
NOMINAL OD (IN) 0.10	NOMINAL OD (MM) 2.5	TEMPERATURE -40°F to +221°F -40°C to +105°C
VOLTAGE 300V	STANDARDS/APPROVALS UL Approved CSA Approved	ADDITIONAL STANDARDS
CSA TYPE AWM I A/B	WEIGHT LBS/MFT 6
