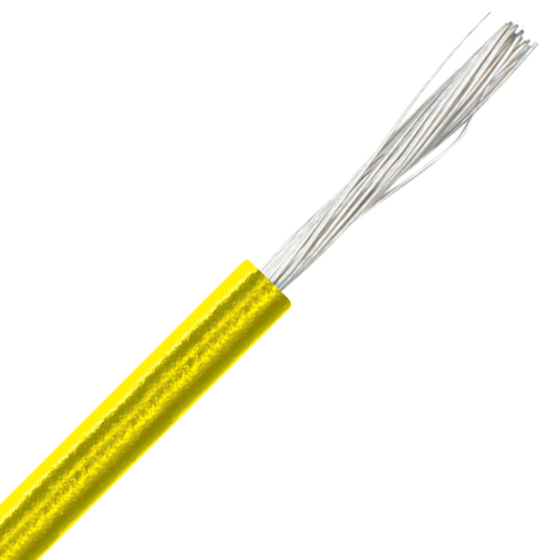

4161010 - LAPP ÖLFLEX® Multi-Standard PVC Hook-Up Wire X07V-K - 4 AWG - Yellow
4161010 - LAPP ÖLFLEX® Multi-Standard PVC Hook-Up Wire X07V-K - 4 AWG - Yellow
$2,585.4900 / 1,000 FT
This LAPP ÖLFLEX® Multi-standard PVC Hook-Up Wire was designed to meet North American and European market requirements. Passes UL 1015, UL 1069, UL 1007, UL MTW, CSA TEW & CE. Available with embossed cable markings upon request.
LAPP part number 4161010.
Available to buy in increments of 328.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 4161010 | AVAILABILITY Contact 800-633-6339 for Availability |
| UL STYLE / STANDARD UL 1015 UL 1063 | TYPE X07V-K | SERIES OLFLEX® Multi-Standard X07V-K |
| AWG/GAUGE 4 | CONDUCTOR STRANDING Stranded | STRAND COUNT High strand count |
| CONDUCTOR MATERIAL Tinned copper | JACKET COLOR Yellow | JACKET MATERIAL PVC |
| INSULATION MATERIAL PVC | NOMINAL OD (IN) 0.40 | NOMINAL OD (MM) 10.2 |
| TEMPERATURE -40°F to +221°F -40°C to +105°C | VOLTAGE 600V | STANDARDS/APPROVALS UL Approved CSA Approved |
| ADDITIONAL STANDARDS | CSA TYPE TEW | WEIGHT LBS/MFT 195 |
