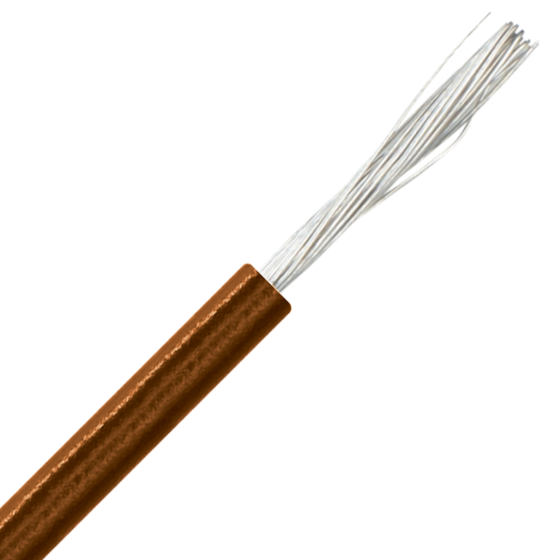

4160903 - LAPP ÖLFLEX® Multi-Standard <HAR> Hook-Up Wire H07V-K - 6 AWG - Brown

Name: 4160903 - LAPP ÖLFLEX® Multi-Standard Hook-Up Wire H07V-K - 6 AWG - Brown
Brand: LAPP
SKU: OLF4160903
Price: 3284.58 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: OLF4160903
Mfg #: 4160903
Manufacturer: LAPP

Contact 800-633-6339 for Availability

$3,284.58 / 1,000 FT $3.28 / 1 FT

This LAPP ÖLFLEX® Multi-standard Hook-Up Wire H05V-K was designed to meet North American and European market requirements. It passes H07V-K, UL AWM, CSA TEW & CE. Available with embossed cable markings upon request.

LAPP part number 4160903.

Must purchase in increments of 100.

Specifications

Download Spec Sheet

MANUFACTURER LAPP	MANUFACTURER PART NUMBER 4160903	UL STYLE / STANDARD UL 1015 UL 1063
TYPE H07V-K	SERIES ÖLFLEX® Multi-Standard H07V-K	AWG/GAUGE 6
CONDUCTOR STRANDING Stranded	STRAND COUNT High strand count	CONDUCTOR MATERIAL Tinned copper
JACKET COLOR Brown	JACKET MATERIAL PVC	INSULATION MATERIAL PVC
NOMINAL OD (IN) 0.35	NOMINAL OD (MM) 9	TEMPERATURE -40°F to +221°F -40°C to +105°C
VOLTAGE 600V	STANDARDS/APPROVALS UL Approved CSA Approved	ADDITIONAL STANDARDS
CSA TYPE TEW	WEIGHT LBS/MFT 126
