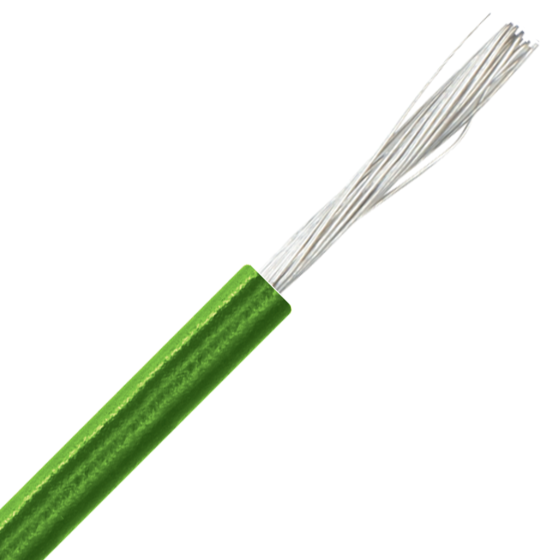

4160611 - LAPP ÖLFLEX® Multi-Standard PVC Hook-Up Wire X07V-K - 12 AWG - Green
4160611 - LAPP ÖLFLEX® Multi-Standard PVC Hook-Up Wire X07V-K - 12 AWG - Green
$841.07 / 1,000 FT $0.84 / 1 FT
This LAPP ÖLFLEX® Multi-standard PVC Hook-Up Wire was designed to meet North American and European market requirements. Passes UL 1015, UL 1069, UL 1007, UL MTW, CSA TEW & CE. Available with embossed cable markings upon request.
LAPP part number 4160611.Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 4160611 | UL STYLE / STANDARD UL 1015 UL 1063 |
| TYPE X07V-K | SERIES OLFLEX® Multi-Standard X07V-K | AWG/GAUGE 12 |
| CONDUCTOR STRANDING Stranded | STRAND COUNT High strand count | CONDUCTOR MATERIAL Tinned Copper |
| JACKET COLOR Green | JACKET MATERIAL PVC | INSULATION MATERIAL PVC |
| NOMINAL OD (IN) 0.18 | NOMINAL OD (MM) 4.6 | TEMPERATURE -40°F to +221°F -40°C to +105°C |
| VOLTAGE 600V | STANDARDS/APPROVALS UL Approved CSA Approved | ADDITIONAL STANDARDS |
| CSA TYPE TEW | WEIGHT LBS/MFT 30 |
