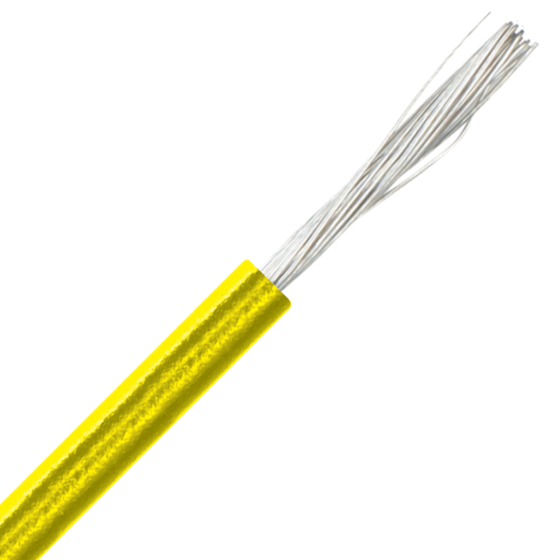

4160510 - LAPP ÖLFLEX® Multi-Standard PVC Hook-Up Wire H07V-K - 14 AWG - Yellow
4160510 - LAPP ÖLFLEX® Multi-Standard PVC Hook-Up Wire H07V-K - 14 AWG - Yellow
$604.16 / 1,000 FT $0.60 / 1 FT
This LAPP ÖLFLEX® Multi-standard PVC Hook-Up Wire was designed to meet North American and European market requirements. Passes UL 1015, UL 1069, UL 1007, UL MTW, CSA TEW & CE. Available with embossed cable markings upon request.
LAPP part number 4160510.Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 4160510 | UL STYLE / STANDARD UL 1015 UL 1063 |
| TYPE X07V-K | SERIES OLFLEX® Multi-Standard X07V-K | AWG/GAUGE 14 |
| CONDUCTOR STRANDING Stranded | STRAND COUNT High strand count | CONDUCTOR MATERIAL Tinned Copper |
| JACKET COLOR Yellow | JACKET MATERIAL PVC | INSULATION MATERIAL PVC |
| NOMINAL OD (IN) 0.16 | NOMINAL OD (MM) 4 | TEMPERATURE -40°F to +221°F -40°C to +105°C |
| VOLTAGE 600V | STANDARDS/APPROVALS UL Approved CSA Approved | ADDITIONAL STANDARDS |
| CSA TYPE TEW | WEIGHT LBS/MFT 25 |
