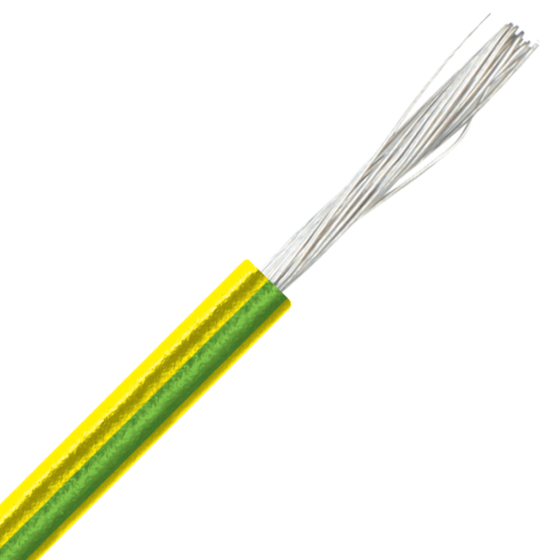

4150800 - LAPP ÖLFLEX® Multi-Standard <HAR> H07V2-K - 8 AWG - Green/Yellow PVC - 1000V

Name: 4150800 - LAPP ÖLFLEX® Multi-Standard H07V2-K - 8 AWG - Green/Yellow PVC - 1000V
Brand: LAPP
SKU: OLF4150800
Price: 3305.2 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: OLF4150800
Mfg #: 4150800
Manufacturer: LAPP

Contact 800-633-6339 for Availability

$3,305.20 / 1,000 FT $3.31 / 1 FT

This LAPP ÖLFLEX® Multi-Standard H07V2-K was designed to meet North American and European market requirements. It passes H07V2-K, UL AWM, CSA TEW & CE, is rated for 1000V.

LAPP part number 4150800.

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER LAPP	MANUFACTURER PART NUMBER 4150800	UL STYLE / STANDARD UL 1063 UL 758 UL 10269
TYPE H07V2-K	SERIES ÖLFLEX® Multi-Standard H07V2-K	AWG/GAUGE 8
CONDUCTOR STRANDING Stranded	CONDUCTOR MATERIAL Tinned Copper	JACKET COLOR Green/Yellow
JACKET MATERIAL PVC	INSULATION MATERIAL PVC	NOMINAL OD (IN) 0.27
NOMINAL OD (MM) 6.8	TEMPERATURE -40°F to +221°F -40°C to +105°C	VOLTAGE 1000V
STANDARDS/APPROVALS UL Approved CSA Approved	ADDITIONAL STANDARDS	CSA TYPE TEW
WEIGHT LBS/MFT 80.65
