Dunbar 3635W 3/8 inch Polyolefin Heat Shrink Tubing - Black
Dunbar 3635W 3/8 inch Polyolefin Heat Shrink Tubing - Black
Part #: DBR3635W-3/8-0
Mfg #: 3635W-3/8-0
Manufacturer: Dunbar
Mfg #: 3635W-3/8-0
Manufacturer: Dunbar
In Stock
$105.50 / 100 FT $1.06 / 1 FT

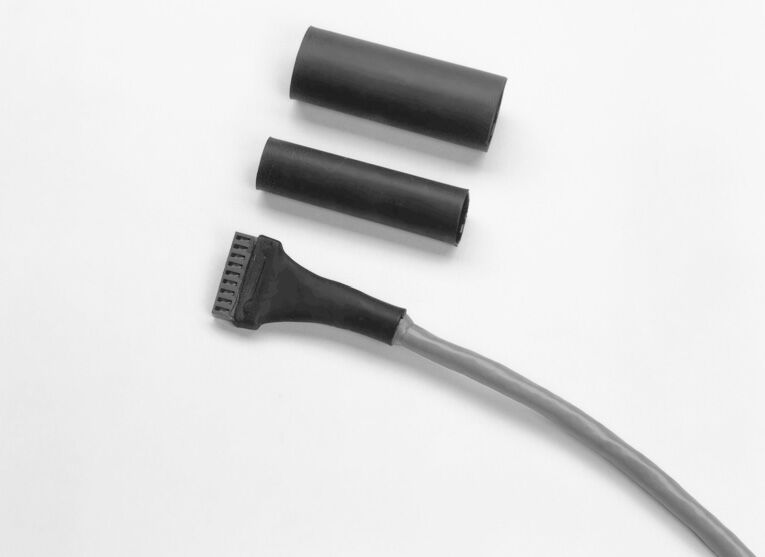

Dunbar's 3635W 3/8 inch polyolefin heat shrink tubing is a flexible, high shrink ratio, flame retardant heat shrinkable polyolefin tube with an adhesive lining which flows when heated. It is suitable to seal and protect a wide variety of electrical applications, including wire splices, breakouts, and connectors-to-cable transitions.
Must purchase in increments of 200.
Specifications
Download Spec Sheet| MANUFACTURER Dunbar | MANUFACTURER PART NUMBER 3635W-3/8-0 | SERIES 3635W |
| HEAT SHRINK Yes | SHRINK RATIO 3:1 | WALL TYPE Dual |
| MATERIAL Polyolefin | SIZE 3/8 | COLOR Black |
| EXPANDED ID (IN) 0.374 | EXPANDED ID (MM) 9.6 | RECOVERED ID MAX (IN) 0.118 |
| RECOVERED ID MAX (MM) 3.2 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.025 | NOMINAL RECOVERED WALL THICKNESS (MM) 0.5 |
| OPERATING TEMPERATURE -131°F to 230°F (-55°C to 110°C | RECOVERY TEMPERATURE 248°F (120°C) | SHRINK TEMPERATURE 248°F (120°C) |
| FLAMMABILITY Flame-Retardant | FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved |
| UL STYLE / STANDARD UL 224 | MIL-SPEC AS23053/4 C3 Full Spools Only |
