Dunbar 3635W 1/4 inch Polyolefin Heat Shrink Tubing - Black
Dunbar 3635W 1/4 inch Polyolefin Heat Shrink Tubing - Black
Part #: DBR3635W-1/4-0
Mfg #: 3635W-1/4-0
Manufacturer: Dunbar
Mfg #: 3635W-1/4-0
Manufacturer: Dunbar
In Stock
$77.00 / 100 FT $0.77 / 1 FT

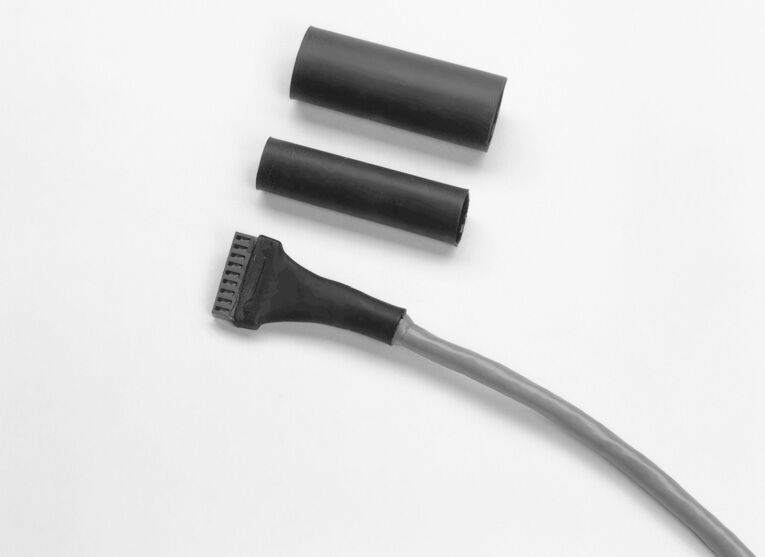

Dunbar's 3635W 1/4 inch polyolefin heat shrink tubing is a flexible, high shrink ratio, flame retardant heat shrinkable polyolefin tube with an adhesive lining which flows when heated. It is suitable to seal and protect a wide variety of electrical applications, including wire splices, breakouts, and connectors-to-cable transitions.
Must purchase in increments of 250.
Specifications
Download Spec Sheet| MANUFACTURER Dunbar | MANUFACTURER PART NUMBER 3635W-1/4-0 | SERIES 3635W |
| HEAT SHRINK Yes | SHRINK RATIO 3:1 | WALL TYPE Dual |
| MATERIAL Polyolefin | SIZE 1/4 | COLOR Black |
| EXPANDED ID (IN) 0.24 | EXPANDED ID (MM) 6.1 | RECOVERED ID MAX (IN) 0.08 |
| RECOVERED ID MAX (MM) 2 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.02 | NOMINAL RECOVERED WALL THICKNESS (MM) 0.4 |
| OPERATING TEMPERATURE -131°F to 230°F (-55°C to 110°C | RECOVERY TEMPERATURE 248°F (120°C) | SHRINK TEMPERATURE 248°F (120°C) |
| FLAMMABILITY Flame-Retardant | FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved |
| UL STYLE / STANDARD UL 224 | MIL-SPEC AS23053/4 C3 Full Spools Only |
