Dunbar 3635W 1-1/2 inch Polyolefin Heat Shrink Tubing - Black
Dunbar 3635W 1-1/2 inch Polyolefin Heat Shrink Tubing - Black
Part #: DBR3635W-1-1/2-0
Mfg #: 3635W-1-1/2-0
Manufacturer: Dunbar
Mfg #: 3635W-1-1/2-0
Manufacturer: Dunbar
In Stock
$383.25 / 100 FT $3.83 / 1 FT

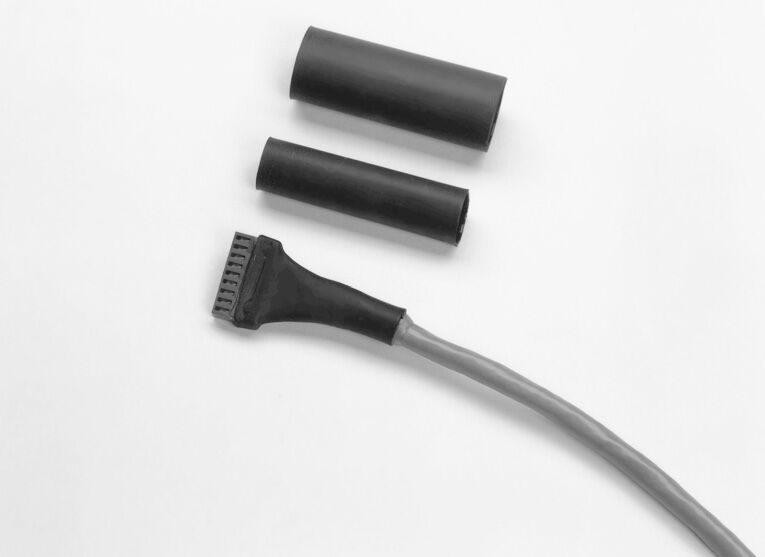

Dunbar's 3635W 1-1/2 inch polyolefin heat shrink tubing is a flexible, high shrink ratio, flame retardant heat shrinkable polyolefin tube with an adhesive lining which flows when heated. It is suitable to seal and protect a wide variety of electrical applications, including wire splices, breakouts, and connectors-to-cable transitions.
Must purchase in increments of 4.
Specifications
Download Spec Sheet| MANUFACTURER Dunbar | MANUFACTURER PART NUMBER 3635W-1-1/2-0 | SERIES 3635W |
| HEAT SHRINK Yes | SHRINK RATIO 3:1 | WALL TYPE Dual |
| MATERIAL Polyolefin | SIZE 1-1/2 | COLOR Black |
| EXPANDED ID (IN) 1.57 | EXPANDED ID (MM) 39.9 | RECOVERED ID MAX (IN) 0.51 |
| RECOVERED ID MAX (MM) 13 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.04 | NOMINAL RECOVERED WALL THICKNESS (MM) 0.6 |
| OPERATING TEMPERATURE -131°F to 230°F (-55°C to 110°C | RECOVERY TEMPERATURE 248°F (120°C) | SHRINK TEMPERATURE 248°F (120°C) |
| FLAMMABILITY Flame-Retardant | FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved |
| UL STYLE / STANDARD UL 224 | MIL-SPEC AS23053/4 C3 Full Spools Only |
