Dunbar 3635 3/8 inch Polyolefin Heat Shrink Tubing - Clear
Dunbar 3635 3/8 inch Polyolefin Heat Shrink Tubing - Clear
$50.00 / 100 FT $0.50 / 1 FT

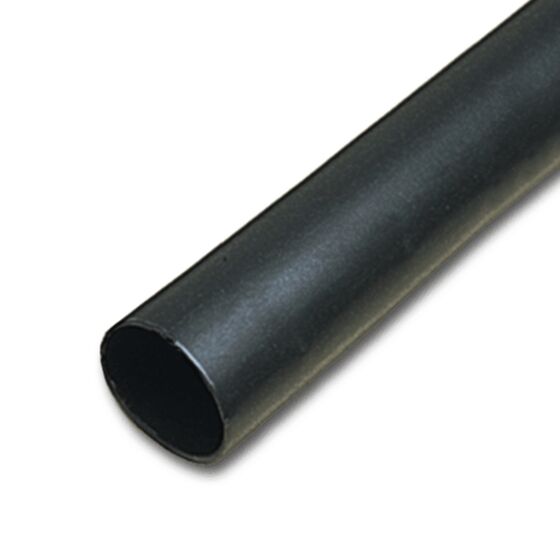

Dunbar's 3635 3/8 inch polyolefin heat shrink tubing is a flexible, high shrink ratio, flame retardant, heat resistant, heat shrinkable polyolefin tube. It may be used to cover large size differences such as wiring harnesses and connectors. Also, it is ideal for light-duty harnesses, jacketing, and identification of wires, cables, and electrical and electronic components.
Must purchase in increments of 200.
Specifications
Download Spec Sheet| MANUFACTURER Dunbar | MANUFACTURER PART NUMBER 3635-3/8-C | HEAT SHRINK Yes |
| SHRINK RATIO 3:1 | WALL TYPE Dual | MATERIAL Polyolefin |
| SIZE 3/8 | COLOR Clear | EXPANDED ID (IN) 0.375 |
| EXPANDED ID (MM) 9.5 | RECOVERED ID MAX (IN) 0.126 | RECOVERED ID MAX (MM) 3.2 |
| NOMINAL RECOVERED WALL THICKNESS (IN) 0.02 | NOMINAL RECOVERED WALL THICKNESS (MM) 0.5 | OPERATING TEMPERATURE -131°F to 275°F (-55°C to 135°C) |
| RECOVERY TEMPERATURE 194°F (90°C) | SHRINK TEMPERATURE 194°F (90°C) | FLAMMABILITY Flame-Retardant |
| FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved | UL STYLE / STANDARD UL 224 |
| MIL-SPEC AS23053/5 Full Spools Only |
