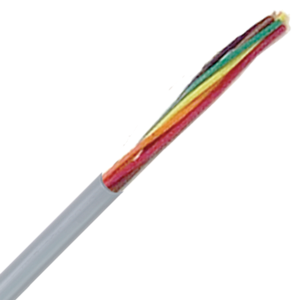

302215 - LAPP UNITRONIC® 300 Data, Signal & Control Cable - 22 AWG/15 Conductor - Gray
302215 - LAPP UNITRONIC® 300 Data, Signal & Control Cable - 22 AWG/15 Conductor - Gray
$5,674.00 / 1,000 FT
LAPP UNITRONIC® 300 is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure-extruded for improved flexibility and easier installation. Ideal for process control; electrical equipment; industrial machinery; low-voltage control interconnect. LAPP part number 302215.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 302215 | TYPE Data Signal & Control |
| SERIES UNITRONIC® 300 / 300S | AWG/GAUGE 22 | NUMBER OF CONDUCTORS 15 |
| CONDUCTOR MATERIAL Tinned copper | CONDUCTOR STRANDING Stranded | SHIELDING Unshielded |
| JACKET COLOR Gray | JACKET MATERIAL PVC | NOMINAL OD (IN) 0.324 |
| NOMINAL OD (MM) 8.2 | VOLTAGE 300V | TEMPERATURE -40°F to +221°F -40°C to +105°C |
| FLEXIBILITY Flexible | ATTRIBUTES Multi-Conductor | TRAY RATINGS UL PLTC |
| STANDARDS/APPROVALS UL Approved CSA Approved CE Approved UL PLTC |
