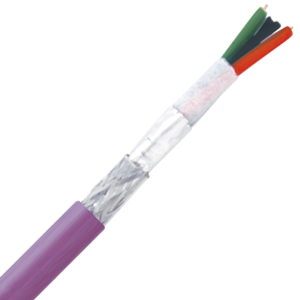

2170997 - LAPP UNITRONIC® Bus PB FD Bus Cable - 24 AWG/1 Pair - Violet - Halogen - Free Compound - Fast Connect
2170997 - LAPP UNITRONIC® Bus PB FD Bus Cable - 24 AWG/1 Pair - Violet - Halogen - Free Compound - Fast Connect
$3,994.11 / 1,000 FT $3.99 / 1 FT
LAPP UNITRONIC® BUS PB FD cables are designed for automation networks requiring fast and reliable data exchange between controllers and field devices. It is ideal for highly flexible applications like cable tracks & moving machine parts; PROFIBUS-DP/FMS/FIP bus systems.
LAPP part number 2170997.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170997 | TYPE Bus |
| PROTOCOLS PROFIBUS- DP PROFIBUS -FIP PROFIBUS -FMS | SERIES UNITRONIC® BUS PB FD | AWG/GAUGE 24 |
| NUMBER OF CONDUCTORS 1 pair | CONDUCTOR MATERIAL Bare Copper | CONDUCTOR STRANDING Stranded |
| SHIELDING Foil Braid | JACKET COLOR Violet | JACKET MATERIAL Halogen-free compound |
| NOMINAL OD (IN) 0.315 | NOMINAL OD (MM) 8 | VOLTAGE 250V |
| TEMPERATURE -22°F to +158°F -30°C to +70°C | FLEXIBILITY Continuous flex | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved |
