2170901 - LAPP ETHERLINE® 2 Pair: CAT5e Flexible - 22 AWG - Black
2170901 - LAPP ETHERLINE® 2 Pair: CAT5e Flexible - 22 AWG - Black
$2,857.53 / 1,000 FT

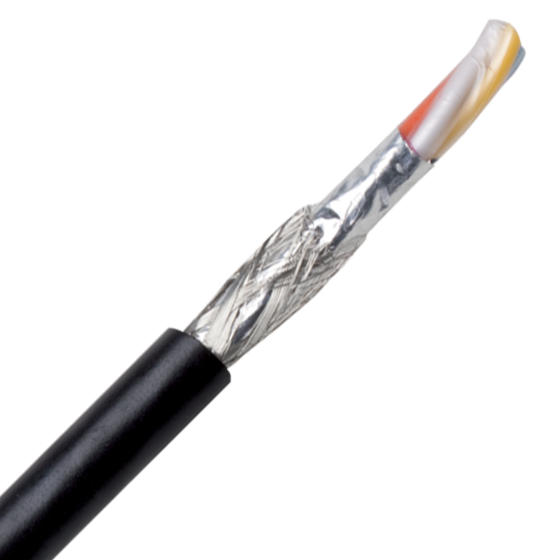

This LAPP ETHERLINE® CAT5e cable is a 22 AWG industrial Ethernet cable for flexible applications
- Provides reliable network communication in demanding industrial environments
- High quality foil and braid shield assure protection from EMI
- Cables meet the transmission requirements for Category 5
- Double screening ensures high transmission reliability in areas with EMI
- Highly oil- and abrasion-resistant Polyurethane (PUR) jacket
- Conforms to PROFINET® standard
- Suitable for EtherCAT® and EtherNet/IP applications
- Fast connect style allows for quick installation
- Suitable for POE per IEEE 802.3at
- LAPP part number 2170901
Available to buy in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170901 | TYPE CAT5e |
| PROTOCOLS EtherCAT EtherNet/IP PoE PROFINET | SERIES ETHERLINE® | MOTION TYPE Flexible |
| AWG/GAUGE 22 | NUMBER OF PAIRS 2 pair | STRAND COUNT 7 |
| SHIELDING Foil Braid | POE (POWER OVER ETHERNET) Yes | NOMINAL OD (IN) 0.244 |
| NOMINAL OD (MM) 6.2 | CONDUCTOR COLOR white yellow blue orange | CONDUCTOR MATERIAL Bare copper |
| CONDUCTOR STRANDING Stranded | JACKET COLOR Black | JACKET MATERIAL PVC |
| INSULATION MATERIAL Polyolefin | TEMPERATURE 14°F to +158°F -10°C to +70°C | VOLTAGE 125V |
| MIN BEND RADIUS 15x cable diameter | ENVIRONMENTAL Flame retardant Highly oil-resistant UV-resistant | APPLICATION Flexible applications; wiring of industrial network devices sensors actuators and cordsets. |
| WEIGHT LBS/MFT 40 |
