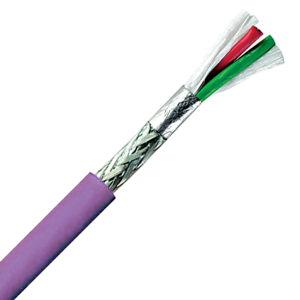

2170856 - LAPP UNITRONIC® Bus PB TRAY Bus Cable - 22 AWG/ 1 Pair - Violet
2170856 - LAPP UNITRONIC® Bus PB TRAY Bus Cable - 22 AWG/ 1 Pair - Violet
$1,857.12 / 1,000 FT $1.86 / 1 FT
LAPP UNITRONIC® BUS PB TRAY is designed for automation networks requiring fast and reliable data exchange between controllers and field devices. It is ideal for automation devices like sensors, actuators, PLCs, and PCs in dry or damp environments; stationary tray applications for PROFIBUS-DP/FMS bus systems. LAPP part number 2170856.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170856 | TYPE Bus |
| PROTOCOLS PROFIBUS- DP PROFIBUS -FIP PROFIBUS -FMS | SERIES UNITRONIC® BUS PB TRAY | AWG/GAUGE 22 |
| NUMBER OF CONDUCTORS 1 pair | CONDUCTOR MATERIAL Bare Copper | CONDUCTOR STRANDING Solid |
| SHIELDING Foil Braid | JACKET COLOR Violet | JACKET MATERIAL PVC |
| NOMINAL OD (IN) 0.331 | NOMINAL OD (MM) 8.4 | VOLTAGE 250V |
| TEMPERATURE -40°F to +176°F -40°C to +80°C | FLEXIBILITY Stationary tray | ATTRIBUTES Multi-Conductor |
| TRAY RATINGS UL PLTC-ER | STANDARDS/APPROVALS UL Approved UL PLTC |
