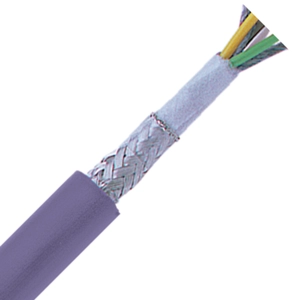

2170815 - LAPP UNITRONIC® Bus LD FD P Bus Cable - 24 AWG/3 Pair - Violet - UL/CSA CMX

2170815 - LAPP UNITRONIC® Bus LD FD P Bus Cable - 24 AWG/3 Pair - Violet - UL/CSA CMX
Part #: OLF2170815
Mfg #: 2170815
Manufacturer: LAPP

Contact 800-633-6339 for Availability

$3.4600 / FT

LAPP UNITRONIC® BUS LD FD P cables are built after the RS-422 and RS-485 standards and are robust solutions for transmitting data over long distances and noisy environments. Stranded copper conductors and high-performance insulation optimize flexing endurance. Tinned copper braid provides superior EMI protection. Ideal for Bus systems such as Modbus, SUCOnet P, Modulink P, VariNet-P; dry or damp rooms; FD version suitable for continuous flex applications like cable tracks and moving machine parts. LAPP part number 2170815.

Available to buy in increments of 10.

Specifications

Download Spec Sheet
MANUFACTURER
LAPP
MANUFACTURER PART NUMBER
2170815
AVAILABILITY

Contact 800-633-6339 for Availability

TYPE
Bus
PROTOCOLS
Modbus
Modulink P
RS-485 & RS-422
SUCOnet P
Varinet-P
SERIES
UNITRONIC® BUS LD / LD FD P
AWG/GAUGE
24
NUMBER OF CONDUCTORS
3 pair
CONDUCTOR MATERIAL
Bare copper
CONDUCTOR STRANDING
Stranded
SHIELDING
Braid
JACKET COLOR
Violet
JACKET MATERIAL
Polyurethane (PUR)
NOMINAL OD (IN)
0.331
NOMINAL OD (MM)
8.4
VOLTAGE
250V
TEMPERATURE
-22°F to +158°F
-30°C to +70°C
ATTRIBUTES
Multi-Conductor
STANDARDS/APPROVALS
UL Approved
