2170803 - LAPP UNITRONIC® Bus LD Bus Cable - 24 AWG/1 Pair - Violet - UL/CSA CMX

2170803 - LAPP UNITRONIC® Bus LD Bus Cable - 24 AWG/1 Pair - Violet - UL/CSA CMX
Part #: OLF2170803
Mfg #: 2170803
Manufacturer: LAPP

Contact 800-633-6339 for Availability

$2,601.0000 / 1,000 FT

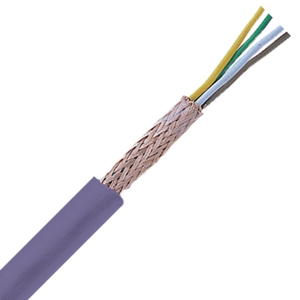

LAPP UNITRONIC® BUS LD cables are built after the RS-422 and RS-485 standards and are robust solutions for transmitting data over long distances and noisy environments. Stranded copper conductors and high-performance insulation optimize flexing endurance. Tinned copper braid provides superior EMI protection. Ideal for Bus systems such as Modbus, SUCOnet P, Modulink P, VariNet-P; dry or damp rooms; FD version suitable for continuous flex applications like cable tracks and moving machine parts. LAPP part number 2170803.

Available to buy in increments of 1.

Specifications

Download Spec Sheet
MANUFACTURER
LAPP
MANUFACTURER PART NUMBER
2170803
AVAILABILITY

Contact 800-633-6339 for Availability

TYPE
Bus
PROTOCOLS
Modbus
Modulink P
RS-485 & RS-422
SUCOnet P
Varinet-P
SERIES
UNITRONIC® BUS LD / LD FD P
AWG/GAUGE
24
NUMBER OF CONDUCTORS
1 pair
CONDUCTOR MATERIAL
Bare copper
CONDUCTOR STRANDING
Stranded
SHIELDING
Braid
JACKET COLOR
Violet
JACKET MATERIAL
PVC
NOMINAL OD (IN)
0.225
NOMINAL OD (MM)
5.7
VOLTAGE
250V
TEMPERATURE
-40°F to +176°F
-40°C to +80°C
FLEXIBILITY
Stationary
ATTRIBUTES
Multi-Conductor
STANDARDS/APPROVALS
UL Approved
