2170476 - LAPP ETHERLINE® 4 Pair: CAT7 Stationary - 22 AWG - Halogen-Free - Green
2170476 - LAPP ETHERLINE® 4 Pair: CAT7 Stationary - 22 AWG - Halogen-Free - Green
$7,583.18 / 1,000 FT $7.58 / 1 FT

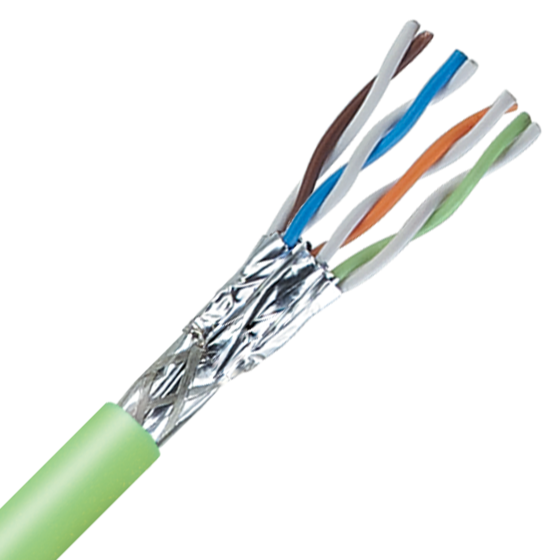

This LAPP ETHERLINE® CAT7 stationary cable is suitable for stationary applications, as well as EtherCAT® and EtherNet/IP applications. The cable's 4 pairs are individually wrapped I nmetal foil and the overbarid provides additional protection against EMI. LAPP part number 2170476.
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170476 | TYPE CAT7 |
| PROTOCOLS EtherCAT EtherNet/IP PoE | SERIES ETHERLINE® | MOTION TYPE Stationary |
| AWG/GAUGE 22 | NUMBER OF PAIRS 4 pair | STRAND COUNT 1 |
| SHIELDING Individually shielded pairs with foil braid | POE (POWER OVER ETHERNET) Yes | NOMINAL OD (IN) 0.343 |
| NOMINAL OD (MM) 8.7 | CONDUCTOR COLOR white/blue & blue white/orange & orange white/green & green white/brown & brown | CONDUCTOR MATERIAL Bare copper |
| CONDUCTOR STRANDING Stranded | JACKET COLOR Green | JACKET MATERIAL Halogen-Free |
| INSULATION MATERIAL Polyethylene | TEMPERATURE -13°F to +176°F -25°C to +80°C | VOLTAGE 100V |
| MIN BEND RADIUS 10x cable diameter | ENVIRONMENTAL Mineral oil-resistant Abrasion-resistant | APPLICATION Stationary applications in harsh environments dry or damp rooms CAT7= 600MHz |
| WEIGHT LBS/MFT 67 |
