2170358 - LAPP UNITRONIC® Bus ASi FD Bus Cable - 2 x 16 AWG - Black - PUR
2170358 - LAPP UNITRONIC® Bus ASi FD Bus Cable - 2 x 16 AWG - Black - PUR
Part #: OLF2170358
Mfg #: 2170358
Manufacturer: LAPP
Mfg #: 2170358
Manufacturer: LAPP
In Stock
$2,249.18 / 1,000 FT

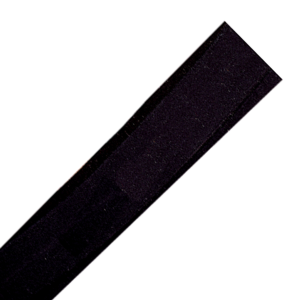

LAPP UNITRONIC® BUS ASi FD is a geometrically-coded, 2-conductor flat cable designed for data and power transfer between simple I/O devices on the sensor/actuator level. This cable is suitable for continuous flex applications and has a halogen-free PUR or oil-resistant TPE jacket. LAPP part number 2170358.
Available to buy in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170358 | TYPE Bus |
| PROTOCOLS AS-i Bus | SERIES UNITRONIC® BUS ASi FD | AWG/GAUGE 16 |
| NUMBER OF CONDUCTORS 2 | CONDUCTOR MATERIAL Tinned copper | CONDUCTOR STRANDING Stranded |
| SHIELDING Unshielded | JACKET COLOR Black | JACKET MATERIAL Polyurethane (PUR) |
| VOLTAGE 300V | TEMPERATURE -40°F to +176°F -40°C to +80°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved CE Approved |
