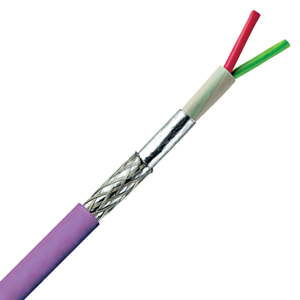

2170326 - LAPP UNITRONIC® Bus PB Bus Cable - 22 AWG/1 Pair - Violet - Halogen - Free Compound - Fast Connect
2170326 - LAPP UNITRONIC® Bus PB Bus Cable - 22 AWG/1 Pair - Violet - Halogen - Free Compound - Fast Connect
$2,368.85 / 1,000 FT
LAPP UNITRONIC® BUS PB cables are designed for automation networks requiring fast and reliable data exchange between controllers and field devices. Additional styles are available upon request (e.g., armored, high temperature, direct burial for outdoor, PROFIBUS PA for intrinsic safety). It is ideal for automation devices like sensors, actuators, PLCs, and PCs in dry or damp environments; PROFIBUS-DP/FMS/FIP bus systems. LAPP part number 2170326.
Available to buy in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170326 | TYPE Bus |
| PROTOCOLS PROFIBUS- DP PROFIBUS -FIP PROFIBUS -FMS | SERIES UNITRONIC® BUS PB | AWG/GAUGE 22 |
| NUMBER OF CONDUCTORS 1 pair | CONDUCTOR MATERIAL Bare copper | CONDUCTOR STRANDING Solid & Stranded |
| SHIELDING Foil Braid | JACKET COLOR Violet | JACKET MATERIAL Halogen-free compound |
| NOMINAL OD (IN) 0.315 | NOMINAL OD (MM) 8 | VOLTAGE 250V |
| TEMPERATURE -22°F to +176°F -30°C to +80°C | FLEXIBILITY Stationary | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved |
