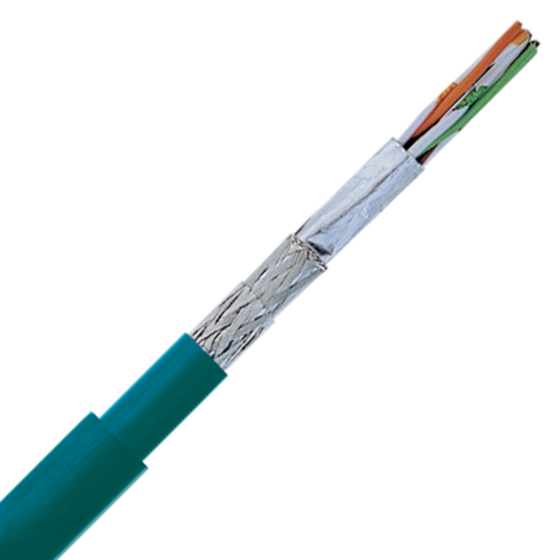

2170298 - LAPP ETHERLINE® 4 Pair: CAT5e Stationary - 24 AWG - Halogen Free - inner and outer - Teal
2170298 - LAPP ETHERLINE® 4 Pair: CAT5e Stationary - 24 AWG - Halogen Free - inner and outer - Teal
$2,078.29 / 1,000 FT $2.08 / 1 FT
The LAPP ETHERLINE® 4 pair CAT5e stationary cables are designed with a foil and braid shield, which protects the cable from EMI and can be used in areas where reliable data transmission is key. LAPP part number 2170298.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170298 | TYPE CAT5e |
| PROTOCOLS EtherCAT EtherNet/IP PoE | SERIES ETHERLINE® | MOTION TYPE Stationary |
| AWG/GAUGE 24 | NUMBER OF PAIRS 6 pair | STRAND COUNT 1 |
| SHIELDING Foil Braid | POE (POWER OVER ETHERNET) Yes | NOMINAL OD (IN) 0.296 |
| NOMINAL OD (MM) 7.5 | CONDUCTOR COLOR white/blue & blue white/orange & orange white/green & green white/brown & brown | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | JACKET COLOR Teal | JACKET MATERIAL Halogen-Free |
| INSULATION MATERIAL Foam skin | TEMPERATURE -22°F to +176°F -30°C to +80°C | VOLTAGE 1000V |
| MIN BEND RADIUS 8x cable diameter | ENVIRONMENTAL Flame retardant Oil-resistant | APPLICATION Stationary applications; industrial field and cell level networking; PLCs sensors and other network devices; dry and damp rooms. |
| WEIGHT LBS/MFT 54 |
