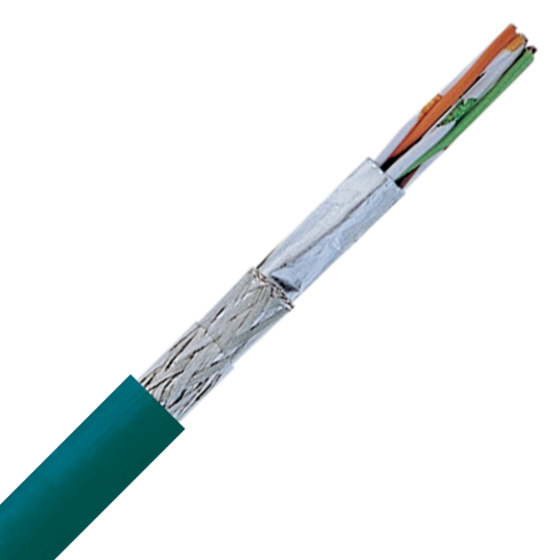

2170283 - LAPP ETHERLINE® 2 Pair: CAT5e Flexible - 26 AWG - Halogen-Free - Teal
2170283 - LAPP ETHERLINE® 2 Pair: CAT5e Flexible - 26 AWG - Halogen-Free - Teal
$1,316.94 / 1,000 FT
This LAPP ETHERLINE® CAT5e cable is a 26 AWG industrial Ethernet cable for flexible applications with a halogen-free jacket. It provides reliable network communication in demanding industrial environments. The high quality foil and braid shield assure protection from EMI. Cables meet the transmission requirements for Category 5.
- Double screening ensures high transmission reliability in areas with EMI
- Highly oil- and abrasion-resistant Polyurethane (PUR) jacket
- Conforms to PROFINET® standard
- Suitable for EtherCAT® and EtherNet/IP applications
- Fast connect style allows for quick installation
- Suitable for POE per IEEE 802.3at
- LAPP part number 2170283
Available to buy in increments of 25.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170283 | TYPE CAT5e |
| PROTOCOLS EtherCAT EtherNet/IP PoE PROFINET | SERIES ETHERLINE® | MOTION TYPE Flexible |
| AWG/GAUGE 26 | NUMBER OF PAIRS 2 pair | STRAND COUNT 7 |
| SHIELDING Foil Braid | NOMINAL OD (IN) 0.21 | NOMINAL OD (MM) 5.4 |
| CONDUCTOR COLOR white/orange & orange white/green & green | CONDUCTOR MATERIAL Bare copper | CONDUCTOR STRANDING Stranded |
| JACKET COLOR Teal | JACKET MATERIAL Halogen-Free | INSULATION MATERIAL Polyethylene |
| TEMPERATURE 23°F to +140°F -5°C to +60°C | VOLTAGE 125V | MIN BEND RADIUS 15x cable diameter |
| ENVIRONMENTAL Flame retardant Highly oil-resistant UV-resistant | APPLICATION Flexible applications; wiring of industrial network devices sensors actuators and cordsets. | WEIGHT LBS/MFT 29 |
