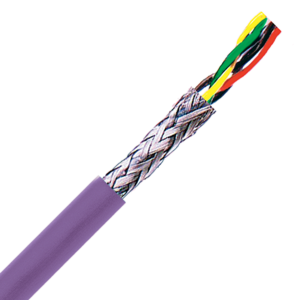

2170272 - LAPP UNITRONIC® BUS CAN FD P Cable - 24 AWG/1 pair - Violet
2170272 - LAPP UNITRONIC® BUS CAN FD P Cable - 24 AWG/1 pair - Violet
$2,773.80 / 1,000 FT
LAPP UNITRONIC® BUS CAN FD P is designed to the CAN open and ISO 11898 standard. It is well suited for high-speed motion control and feedback loop applications, providing high reliability and efficient use of network bandwidth. LAPP part number 2170272 is available to purchase online.
Available to buy in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170272 | TYPE Bus |
| PROTOCOLS CAN Bus | SERIES UNITRONIC® BUS CAN FD P | AWG/GAUGE 24 |
| NUMBER OF CONDUCTORS 1 pair | CONDUCTOR MATERIAL Bare copper | CONDUCTOR COLOR Pair 1: white & brown Pair 2: green & yellow |
| CONDUCTOR STRANDING Stranded | SHIELDING Shielded | JACKET COLOR Violet |
| JACKET MATERIAL Halogen-Free PUR | NOMINAL OD (IN) 0.252 | NOMINAL OD (MM) 6.4 |
| VOLTAGE 250V | TEMPERATURE -22°F to +158°F -30°C to +70°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved | WEIGHT LBS/MFT 27 |
