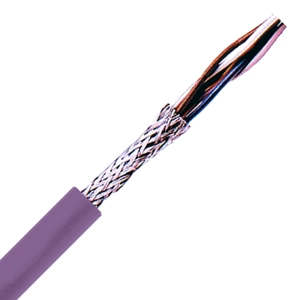

2170264 - LAPP UNITRONIC® BUS CAN Cable - 22 AWG/2 pair - Violet
2170264 - LAPP UNITRONIC® BUS CAN Cable - 22 AWG/2 pair - Violet
$2,405.03 / 1,000 FT
LAPP UNITRONIC® BUS CAN is designed to the CAN open and ISO 11898 standard. It is well suited for high-speed motion control and feedback loop applications, providing high reliability and efficient use of network bandwidth. LAPP part number 2170264 is available to purchase online.
Available to buy in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170264 | TYPE Bus |
| PROTOCOLS CAN Bus | SERIES UNITRONIC® BUS CAN | AWG/GAUGE 22 |
| NUMBER OF CONDUCTORS 2 pair | CONDUCTOR MATERIAL Bare copper | CONDUCTOR COLOR Pair 1: white & brown Pair 2: green & yellow |
| CONDUCTOR STRANDING Stranded | SHIELDING Shielded | JACKET COLOR Violet |
| JACKET MATERIAL PVC | NOMINAL OD (IN) 0.335 | NOMINAL OD (MM) 8.5 |
| VOLTAGE 250V | TEMPERATURE -22°F to +176°F -30°C to +80°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved | WEIGHT LBS/MFT 59 |
