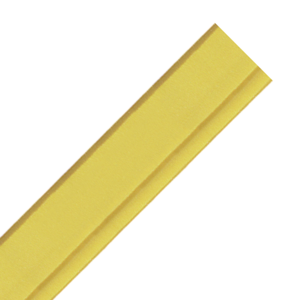

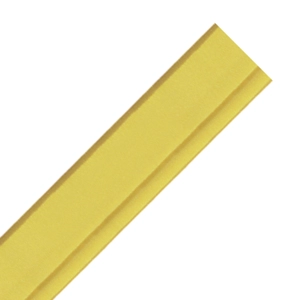

2170228 - LAPP UNITRONIC® Bus ASi Bus Cable - 2 x 16 AWG - Yellow - Rubber
2170228 - LAPP UNITRONIC® Bus ASi Bus Cable - 2 x 16 AWG - Yellow - Rubber
$1,764.44 / 1,000 FT $1.76 / 1 FT
LAPP UNITRONIC® BUS ASi is a geometrically-coded, 2-conductor flat cable designed for data and power transfer between simple I/O devices on the sensor/actuator level. The cable is available with 3 different jackets: PVC, rubber, or TPE. The voltage drop on the long distance version is smaller due to larger conductor cross-sections. Ideal for data and power transmission between sensors, actuators, slaves, repeaters and master; TPE version suitable for wet areas and cooling lubricants. LAPP part number 2170228.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170228 | TYPE Bus |
| PROTOCOLS AS-i Bus | SERIES UNITRONIC® BUS ASi | AWG/GAUGE 16 |
| NUMBER OF CONDUCTORS 2 | CONDUCTOR MATERIAL Tinned Copper | CONDUCTOR STRANDING Stranded |
| SHIELDING Unshielded | JACKET COLOR Yellow | JACKET MATERIAL Rubber |
| VOLTAGE 300V | TEMPERATURE -40°F to +185°F -40°C to +85°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved CE Approved |
