Dunbar 1635F 1/8 inch Polyolefin Heat Shrink Tubing - White
Dunbar 1635F 1/8 inch Polyolefin Heat Shrink Tubing - White
Part #: DBR1635F-1/8-9
Mfg #: 1635F-1/8-9
Manufacturer: Dunbar
Mfg #: 1635F-1/8-9
Manufacturer: Dunbar
In Stock
$304.00 / 1,000 FT $0.30 / 1 FT

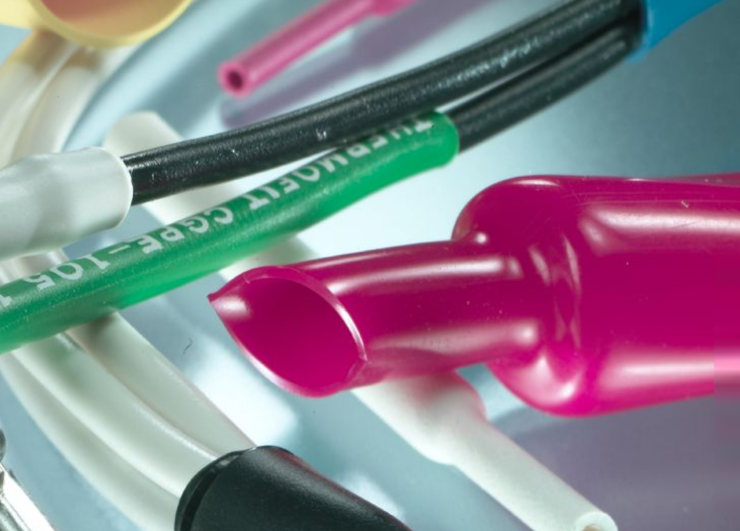

Dunbar's 1635F 1/8 inch polyolefin heat shrink tubing is a flexible, flame retardant, heat shrinkable polyolefin tube. It is designed for a wide range of applications including insulation for electric & electronic devices, wire strain relief, and protective covering for parts such as resistors and capacitors.
Must purchase in increments of 500.
Specifications
Download Spec Sheet| MANUFACTURER Dunbar | MANUFACTURER PART NUMBER 1635F-1/8-9 | SERIES 1635F |
| HEAT SHRINK Yes | SHRINK RATIO 2:1 | WALL TYPE Single |
| MATERIAL Polyolefin | SIZE 1/8 | COLOR White |
| EXPANDED ID (IN) 0.125 | EXPANDED ID (MM) 3.2 | RECOVERED ID MAX (IN) 0.062 |
| RECOVERED ID MAX (MM) 1.6 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.017 | NOMINAL RECOVERED WALL THICKNESS (MM) 0.432 |
| OPERATING TEMPERATURE -131°F to 275°F (-55°C to 135°C) | RECOVERY TEMPERATURE 194°F (90°C) | SHRINK TEMPERATURE 194°F (90°C) |
| FLAMMABILITY Flame-Retardant | FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved |
| UL STYLE / STANDARD UL 224 | MIL-SPEC AS23053/5 Full Spools Only |
