1555 WO005 - Alpha Wire MIL-W-76B/Type MW PVC Hook-Up/Lead Wire - 18 AWG - 16/30 Stranded Conductor - Tinned Copper - 1000V - White/Orange - 100ft

Name: 1555 WO005 - Alpha Wire MIL-W-76B/Type MW PVC Hook-Up/Lead Wire - 18 AWG - 16/30 Stranded Conductor - Tinned Copper - 1000V - White/Orange - 100ft
Brand: Alpha Wire
SKU: ALP1555-WO005
Price: 233.32 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP1555-WO005
Mfg #: 1555 WO005
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$233.32 / 100 FT $2.33 / 1 FT

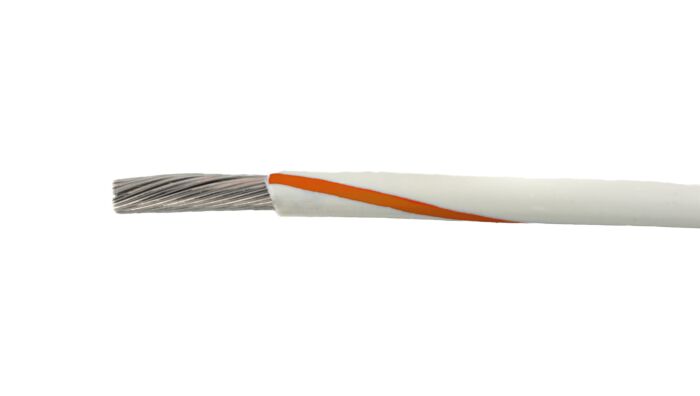

Alpha Wire's MIL-W-76B/Type MW Hook-up / Lead Wire features a general purpose PVC insulation with good abrasion and excellent flame resistance. 18 AWG, Stranded Conductor, Tinned Copper, 1000V, White/Orange, 100ft, 1555 WO005

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 1555 WO005	AWG/GAUGE 18
CONDUCTOR STRANDING Stranded	CONDUCTOR MATERIAL Tinned Copper	JACKET COLOR White/Orange
INSULATION MATERIAL PVC	NOMINAL OD (IN) 0.079	INSULATION THICKNESS (IN) 0.016
TEMPERATURE -40°F to +176°F -40°C to +80°C	VOLTAGE 1000V	ADDITIONAL STANDARDS CA Prop 65
MIL-SPEC MIL-W-76B Type MW
