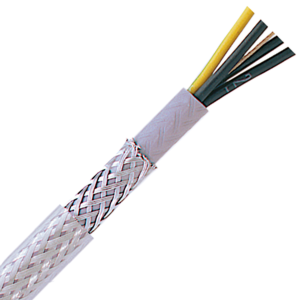

1125504 - LAPP ÖLFLEX® CLASSIC 110 SY Flexible Power and Control Cable - Galvanized steel braid - 12 AWG 4 Conductors - Transparent
1125504 - LAPP ÖLFLEX® CLASSIC 110 SY Flexible Power and Control Cable - Galvanized steel braid - 12 AWG 4 Conductors - Transparent
$10,910.21 / 1,000 FT $10.91 / 1 FT
LAPP part number ÖLFLEX® CLASSIC 110 SY Flexible Power and Control Cable is a number-coded multi-conductor power and control cable with a galvanized steel braid shield for mechanical and lowfrequency protection. It is a European-style cable conforming to CE, for use in all electrical equipment in dry, damp, or wet conditions. LAPP part number 1125504.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 1125504 | SERIES ÖLFLEX® CLASSIC 110 SY |
| AWG/GAUGE 12 | NUMBER OF CONDUCTORS 4 | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Galvanized steel braid | JACKET COLOR Transparent |
| JACKET MATERIAL PVC | NOMINAL OD (IN) 0.551 | NOMINAL OD (MM) 14 |
| INSULATION PVC | VOLTAGE 500V | TEMPERATURE -40°F to +176deg;F -40°C to +80°C |
| ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS CE Approved |
