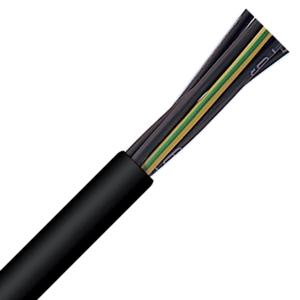

1123438 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 10 AWG 4 Conductors - Black
1123438 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 10 AWG 4 Conductors - Black
$10,169.39 / 1,000 FT $10.17 / 1 FT
LAPP part number ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable is a low smoke, zero halogen (LSZH) multi-conductor power and control cable. It is for use in all electrical equipment in dry or damp conditions. It is UV and weather resistant. LAPP part number 1123438.
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 1123438 | SERIES ÖLFLEX® CLASSIC 130 H BK |
| AWG/GAUGE 10 | NUMBER OF CONDUCTORS 4 | CONDUCTOR MATERIAL Bare copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Unshielded | JACKET COLOR Black |
| JACKET MATERIAL Halogen-free compound | NOMINAL OD (IN) 0.595 | NOMINAL OD (MM) 15.1 |
| INSULATION Halogen-free compound | VOLTAGE 1000V | TEMPERATURE -40°F to +176deg;F -40°C to +80°C |
| ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS UL Approved CE Approved |
