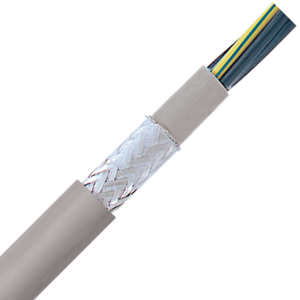

10035068 - LAPP ÖLFLEX® CLASSIC 110 CH Flexible Power and Control Cable - Tinned copper braid - 16 AWG 3 Conductors - Gray
10035068 - LAPP ÖLFLEX® CLASSIC 110 CH Flexible Power and Control Cable - Tinned copper braid - 16 AWG 3 Conductors - Gray
$7,169.77 / 1,000 FT $7.17 / 1 FT
LAPP part number ÖLFLEX® CLASSIC 110 CH Flexible Power and Control Cable is a low smoke, zero halogen (LSZH), multi-conductor control and power cable with improved oil resistance and flame protection. It is for use in all electrical equipment in dry or damp conditions. It is UV and weather resistant. LAPP part number 10035068.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 10035068 | SERIES ÖLFLEX® CLASSIC 110 CH |
| AWG/GAUGE 16 | NUMBER OF CONDUCTORS 3 | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Tinned copper braid | JACKET COLOR Gray |
| JACKET MATERIAL Halogen-free compound | NOMINAL OD (IN) 0.354 | NOMINAL OD (MM) 9 |
| INSULATION Halogen-free compound | VOLTAGE 500V | TEMPERATURE -40°F to +176deg;F -40°C to +80°C |
| ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS UL Approved CE Approved |
