1/8 600V 125C 2:1 UL CSA Yellow AS23053/5-104-4 GP, POLYOLEFIN
1/8 600V 125C 2:1 UL CSA Yellow AS23053/5-104-4 GP, POLYOLEFIN
Part #: SUMB2-1/8-4
Mfg #: AMS-DTL-23053/5-104-4
Manufacturer: Sumitomo
Mfg #: AMS-DTL-23053/5-104-4
Manufacturer: Sumitomo
In Stock
$24.16 / 100 FT $0.24 / 1 FT

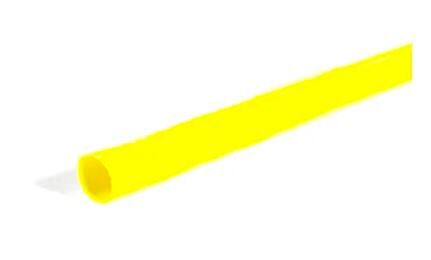

Sumitomo's Sumitube B2 is suitable for the insulation, protection and reinforcement of wire terminations and joints, for color identification and bundling of wires, and for the insulation and protection of resistors and capacitors. Multiple colors available. 1/8 inch, Yellow, Polyolefin, Single Wall, 2:1 Shrink Ratio
ON SALE WHILE SUPPLIES LAST
Must purchase in increments of 500.
Specifications
| MANUFACTURER Sumitomo | MANUFACTURER PART NUMBER AMS-DTL-23053/5-104-4 | SERIES Sumitube B2 |
| HEAT SHRINK Yes | SHRINK RATIO 2:1 | WALL TYPE Single |
| MATERIAL Polyolefin | SIZE 1/8 | COLOR Yellow |
| EXPANDED ID (MM) 3.5 | RECOVERED ID MAX (MM) 1.6 | NOMINAL RECOVERED WALL THICKNESS (MM) 0.51 |
| OPERATING TEMPERATURE -55°C to 135°C | SHRINK TEMPERATURE 90°C | FLAMMABILITY Flame-Retardant |
| FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved CSA Approved | MIL-SPEC AS23053/5 Full Spools Only |
