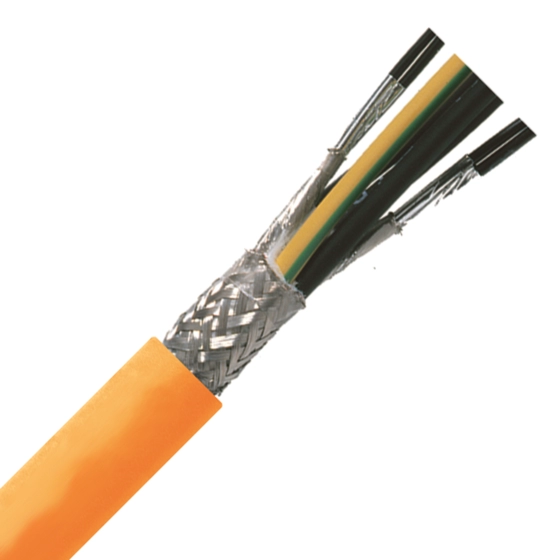

0027967 - LAPP ÖLFLEX® SERVO FD 796 CP - 1 AWG 6 conductors- Orange
0027967 - LAPP ÖLFLEX® SERVO FD 796 CP - 1 AWG 6 conductors- Orange
Request Quote for Price
LAPP ÖLFLEX® SERVO FD 796 CP is specially designed, manufactured, and tested by LAPP for usage in modern high-acceleration cable chain applications as well as over long travel lengths. It replaces seven ÖLFLEX® SERVO FD cables: 755CP, 755 CP DESINA, 781 CP, 785 CP, 785 CP DESINA, 790 CP & 795 CP. 1 AWG /4c+ (16 AWG/ 1 pr). LAPP 0027967
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 0027967 | SERIES ÖLFLEX® SERVO FD 796 CP |
| AWG/GAUGE 1 | NUMBER OF CONDUCTORS 6 | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Braid | JACKET COLOR Orange |
| JACKET MATERIAL Polyurethane (PUR) | NOMINAL OD (IN) 1.367 | NOMINAL OD (MM) 34.7 |
| VOLTAGE 1000V | TEMPERATURE RANGE -40°F to +176°F -40°C to +80°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved CE Approved |
