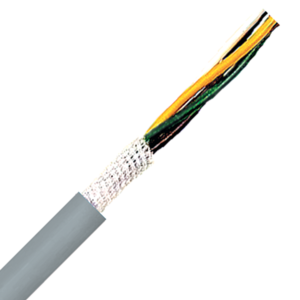

0027872 - LAPP UNITRONIC® FD Data, Signal & Control Cable - 22 AWG/4 Conductor - Gray
0027872 - LAPP UNITRONIC® FD Data, Signal & Control Cable - 22 AWG/4 Conductor - Gray
$1,314.45 / 1,000 FT
LAPP UNITRONIC® FD is a DIN-style communication cable designed for continuous flexing industrial signal and low voltage control applications. The specially blended PVC jacket is resistant to most oils, solvents, and water-based coolants. It is ideal for high-speed automated equipment; robotics; CNC and multi-axis cutting equipment; other cable track applications. LAPP part number 0027872.
Available to buy in increments of 250.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 27872 | TYPE Data Signal & Control |
| SERIES UNITRONIC® FD / FD CY | AWG/GAUGE 22 | NUMBER OF CONDUCTORS 4 |
| CONDUCTOR MATERIAL Bare copper | CONDUCTOR STRANDING Stranded | SHIELDING Unshielded |
| JACKET COLOR Gray | JACKET MATERIAL PVC | NOMINAL OD (IN) 0.224 |
| NOMINAL OD (MM) 5.7 | VOLTAGE 350V | TEMPERATURE 23°F to +158°F -5°C to +70°C |
| FLEXIBILITY Continuous flex | ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS CE Approved |
