0027661 - LAPP ÖLFLEX® FD 855 CP Shielded Multiconductor Cable - 16 AWG 4 Conductor - Gray
0027661 - LAPP ÖLFLEX® FD 855 CP Shielded Multiconductor Cable - 16 AWG 4 Conductor - Gray
$4,876.64 / 1,000 FT $4.88 / 1 FT

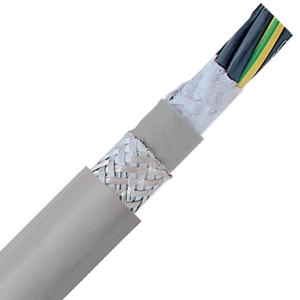

ÖLFLEX® FD 855 CP is designed for extreme mechanical stresses due to a tighter bend radius in continuous flex applications. Materials are halogen-free and environmentally friendly with an expand temperature range. The polyurethane jacket is mechanically and chemically resistant to many environments. ÖLFLEX® FD 855 CP is a shielded version available with an overall tinned copper braid. This is recommended when electrical interference needs to be suppressed. LAPP part number 0027661.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 0027661 | SERIES ÖLFLEX® FD 855 CP |
| AWG/GAUGE 16 | NUMBER OF CONDUCTORS 4 | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Braid | JACKET COLOR Gray |
| JACKET MATERIAL Polyurethane (PUR) | NOMINAL OD (IN) 0.386 | NOMINAL OD (MM) 9.8 |
| INSULATION TPE | VOLTAGE 1000V | DYNAMIC TEMPERATURE RATING -40°F to +176°F -40°C to +80°C |
| STATIC TEMPERATURE RATING -58°F to +176°F -50°C to +80°C | ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS CE Approved UL AWM 21576 |
| WEIGHT LBS/MFT 105 |
