0027640 - LAPP ÖLFLEX® FD 855 CP Shielded Multiconductor Cable - 18 AWG 12 Conductor - Gray
0027640 - LAPP ÖLFLEX® FD 855 CP Shielded Multiconductor Cable - 18 AWG 12 Conductor - Gray
$23,966.7680 / 1,000 FT

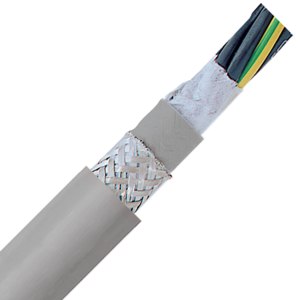

ÖLFLEX® FD 855 CP is designed for extreme mechanical stresses due to a tighter bend radius in continuous flex applications. Materials are halogen-free and environmentally friendly with an expand temperature range. The polyurethane jacket is mechanically and chemically resistant to many environments. ÖLFLEX® FD 855 CP is a shielded version available with an overall tinned copper braid. This is recommended when electrical interference needs to be suppressed. LAPP part number 0027640.
Available to buy in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 0027640 | AVAILABILITY Contact 800-633-6339 for Availability |
| SERIES ÖLFLEX® FD 855 CP | AWG/GAUGE 18 | NUMBER OF CONDUCTORS 12 |
| CONDUCTOR MATERIAL Bare copper | CONDUCTOR STRANDING Stranded | SHIELDING Braid |
| JACKET COLOR Gray | JACKET MATERIAL Polyurethane (PUR) | NOMINAL OD (IN) 0.52 |
| NOMINAL OD (MM) 13.2 | INSULATION TPE | VOLTAGE 1000V |
| DYNAMIC TEMPERATURE RATING -40°F to +176°F -40°C to +80°C | STATIC TEMPERATURE RATING -58°F to +176°F -50°C to +80°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS CE Approved UL AWM 21576 | WEIGHT LBS/MFT 196 |
