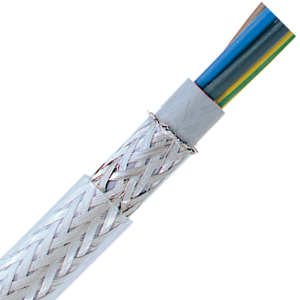

00161023 - LAPP ÖLFLEX® CLASSIC 100 SY Flexible Power and Control Cable - Galvanized steel braid - 12 AWG 4 Conductors - Transparent
00161023 - LAPP ÖLFLEX® CLASSIC 100 SY Flexible Power and Control Cable - Galvanized steel braid - 12 AWG 4 Conductors - Transparent
$12,514.12 / 1,000 FT $12.51 / 1 FT
LAPP part number ÖLFLEX® CLASSIC 100 SY Flexible Power and Control Cable is a color-coded multi-conductor power and control cable with a galvanized steel braided shield for mechanical and low frequency protection. It is for use in all electrical equipment in dry, damp, or wet conditions. It is a European-style cable conforming to CE. LAPP part number 00161023.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 00161023 | SERIES ÖLFLEX® CLASSIC 100 SY |
| AWG/GAUGE 12 | NUMBER OF CONDUCTORS 4 | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Galvanized steel braid | JACKET COLOR Transparent |
| JACKET MATERIAL PVC | NOMINAL OD (IN) 0.618 | NOMINAL OD (MM) 15.7 |
| INSULATION PVC | VOLTAGE 750V | TEMPERATURE -40°F to +176deg;F -40°C to +80°C |
| ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS CE Approved |
