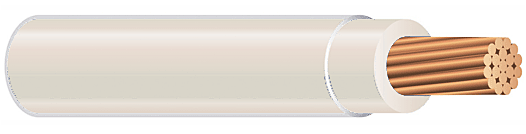

THHN Building Wire - 3 AWG - White - Stranded Conductor
THHN Building Wire - 3 AWG - White - Stranded Conductor
Part #: KLTTHHN3-19-9
Manufacturer: Approved Manufacturers
Manufacturer: Approved Manufacturers
Contact 800-633-6339 for Availability
$2,920.00 / 1,000 FT
THHN wire is primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. 3 gauge, white Stranded Conductor
Available to buy in increments of 500.
Specifications
Download Spec Sheet| MANUFACTURER Approved Manufacturers | TYPE THHN | AWG/GAUGE 5 |
| CONDUCTOR STRANDING Stranded | STRAND COUNT 19 | CONDUCTOR MATERIAL Annealed copper |
| SHIELDING Unshielded | JACKET MATERIAL Nylon | JACKET COLOR White |
| JACKET THICKNESS (MM) 0.15 | JACKET THICKNESS (IN) 0.006 | INSULATION THICKNESS (IN) 0.04 |
| INSULATION THICKNESS (MM) 1.016 | NOMINAL OD (IN) 0.378 | NOMINAL OD (MM) 9.6012 |
| TEMPERATURE 140°F (60°C) 167°F (75°C) 194°F (90°C) | VOLTAGE 600V | AMPACITY @ 60°C 85 |
| AMPACITY @ 75°C 100 | AMPACITY @ 90C 110 | UL STYLE / STANDARD UL 83 UL 1063 |
| ENVIRONMENTAL Heat moisture oil gasoline and sunlight resistant | WEIGHT LBS/MFT 188 |
