0027952 - LAPP ÖLFLEX® SERVO FD 796 CP - 12 AWG 4 conductors- Orange
0027952 - LAPP ÖLFLEX® SERVO FD 796 CP - 12 AWG 4 conductors- Orange
Part #: OLF0027952
Mfg #: 27952
Manufacturer: LAPP
Mfg #: 27952
Manufacturer: LAPP
In Stock
$11,854.70 / 1,000 FT

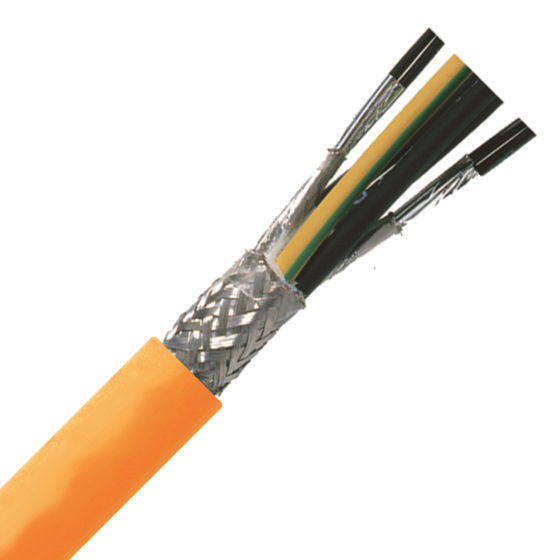

LAPP ÖLFLEX® SERVO FD 796 CP is specially designed, manufactured, and tested by LAPP for usage in modern high-acceleration cable chain applications as well as over long travel lengths. It replaces seven ÖLFLEX® SERVO FD cables: 755CP, 755 CP DESINA, 781 CP, 785 CP, 785 CP DESINA, 790 CP & 795 CP. 12 AWG/4c. LAPP 0027952
Available to buy in increments of 25.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 27952 | SERIES ÖLFLEX® SERVO FD 796 CP |
| AWG/GAUGE 12 | NUMBER OF CONDUCTORS 4 | CONDUCTOR MATERIAL Bare copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Braid | JACKET COLOR Orange |
| JACKET MATERIAL Polyurethane (PUR) | NOMINAL OD (IN) 0.469 | NOMINAL OD (MM) 11.9 |
| VOLTAGE 1000V | TEMPERATURE RANGE -40°F to +176°F -40°C to +80°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved CE Approved |
